1390 6090 wood acrylic art laser cutter machine

FOB Reference Price:Get Latest Price
$2,000.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LC1390 laser cutting machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Quick Details
Applicable Material:
Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood, 1390 6090 wood acrylic art laser cutter machine
Laser Type:
Cutting Area:
Cutting Speed:
Graphic Format Supported:
AI, BMP, DST, DXF, PLT, 1390 6090 wood acrylic art laser cutter machine
Laser Cutting
Cutting Thickness:
10mm acrylic
CNC or Not:
Cooling Mode:
Water Cooling
Control Software:
DSP control system
Place of Origin:
Shandong, China
Brand Name:
CE, ISO, 1390 6090 wood acrylic art laser cutter machine
Product Name:
1390 6090 wood acrylic art laser cutter machine
Gray and white
Net Weight:
Driving system:
stepper motor
Cooling mode:
water-cooling and protection system
Controlling software:
DSP control system
Compatible software:
Coredraw AutoCAD Photoshop
Auxiliary equipment:
exhaust-fans,air-exhaust pipe
Laser power:
60w 80w 80w 100w 150w optional
Whole machine size:
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
150 Set/Sets per Month 1390 6090 wood acrylic art laser cutter machine
Packaging & Delivery
Packaging Details
in wood case
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

1390 6090 wood acrylic art laser cutter machine

Working area: 1300*900mm. Laser power: 80w,100w,130w,150w (Optional)

1, Configuration with imported double guide, the machine running smoothly and with smooth incisions 2 ,Investigation of three axes drive ,with precision synchronous belt drive,cutting speed, high precision


Specifications for 1390 6090 wood acrylic art laser cutter machine

Laser typesealed Co2 laser tube
laser power 80w,100w,130w,150w,200w(GSI)(Optional)
engraving area1300*900mm
whole machine size 1820*1310*1070mm
Cutting Speed 0-24,000mm/min
Resetting positioning accuracy±0.05mm
Working voltageAC 110 - 220V±10%, 50 - 60Hz
Gross power <1,200W
Operating temperature0 - 45℃
Operating humidity5- 95%
Graphic format supportedBMP,PLT, DST, DXF, and AI
Driving systemstepper
Cooling modewater-cooling and protection system
Auxiliary equipmentsExhaust-fans, air-exhaust pipe
Compatible softwareCorelDraw  AutoCAD  Photoshop
Net Weight320kg


1390N laser cutting machine technical parameter:

Laser type : Sealed CO2 laser tube

laser power : 80W ,100W,130W,150W,200W (GSI)optional

Cutting area : 1,300 x 900mm

Machine size : 1,820 x 1,310 x 1070mm

work table : 18mm lift platform

cutting speed : 0 - 24,000mm/min
Repeat high precision : ±0.05mm
operating voltage : AC 110 - 220V ±10%, 50 - 60Hz
total power :<1,500W

operating temperature  :0 - 45°C
Working humidity : 5 - 95%
Supported graphics format  BMP, PLT, DST, DXF, and AI

motor drivers : Stepper

cooling-down method : Forced water cooling and protection system

Auxiliary device : Exhaust fan and exhaust pipe

Software:DSP control system

compatible software : CorelDraw  AutoCAD  Photoshop

Machine weight : 320kg


The Accessory Parts:

1390N laser cutting machine .High cutting engraving precision. Install Leadshine stepper motor.CW3000.CW5000 and CW5200 water chiller. Extra parts have laser red dot. Auto-focus device. Extra working table.


1390N laser cutting machine-The samples &application:

Engrave cuting material:acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other nonmetal materials with complex shapes .

Special for wood acrylic laser cutting engraving.



More Model Choose Pls click Below:


Our company:
Jinan G.Weike Science&Technology Co., Ltd was established in July 2004. It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in the north of China
 Since founded 14 years ago, G.Weike has been abiding by the “G-olden quality,Weike-
 G.Weike has 31 national patents. The newly developed medium or high power fiber laser cutting machine has high photoelectric conversion efficiency, high cutting speed, high material utilization and stable performance . Fiber cutting is the industry trend and it will lead a new era of cutting  industry.

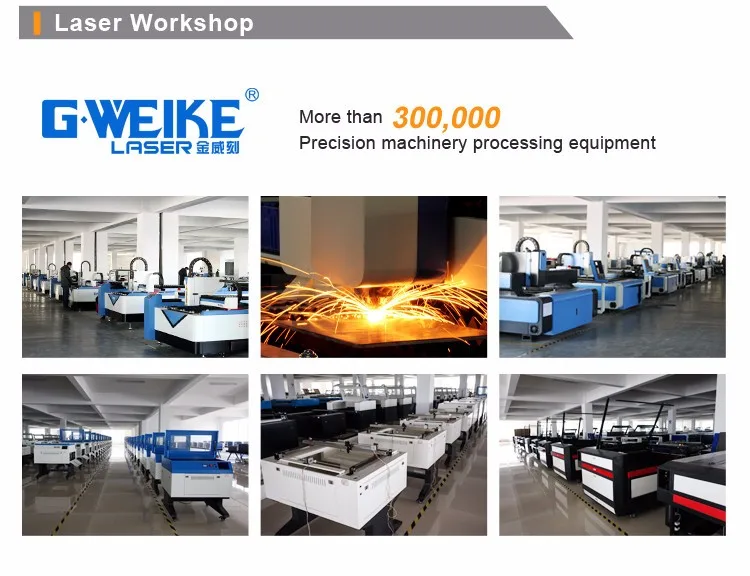

Package and Transport-workshop & Packing & shipment

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool

2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.

3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.Wooden box at the bottom of a solid iron socket for easy handling



Warranty and service:

Three years warranty for machine. English technical to door service.

English manual and Video CD for machine using and maintenance.We offer free training in our factory,

welcome to visit and learn more about our machines.

Free accessories  :Software ,manual, book, cd videos, USBcontrol

Clients and Exhibition:

CE and FDA Certifications:
Any Interest pls Contact :
